Ferrite 90° countersunk pot magnet 40x5.5x8 mm

Code: MC10075
Not rated
€5,28 / pcs €4,36 excl. VAT
In Stock

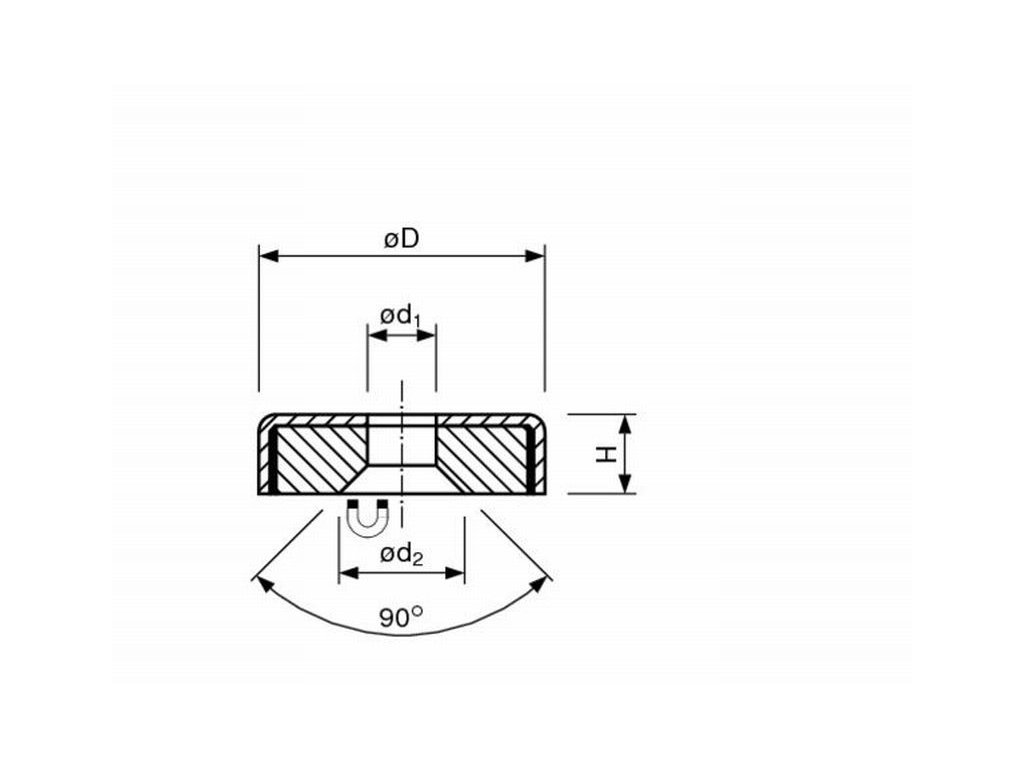

Diameter D: 40 mm | d1: 5.5 mm | H: 8 mm | Pull force: 90 N | Temperature: 200 °C

Detailed information

Product detailed description

.

Additional parameters

Category: Ferrite countersunk pot magnets
Type: Ferrite
d1: 5.5 mm
d2: 11.5 mm
H: 8 mm
DK: 0 mm
Diameter D: 40 mm
Pull force (cca 1kg ~ 10N): 90 N
Shape: With center hole
Temperature (°C): 200 °C
Tolerance: +0.1/-0.1 mm
Weight: 52 g
