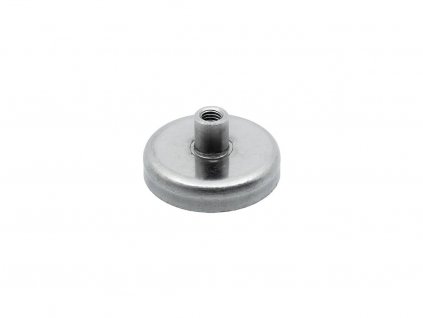

Ferrite pot magnets with screw socket

Diameter D: 100 mm | L: 43 mm | H: 22 mm | Pull force: 900 N | Temperature: 200 °C

Diameter D: 10 mm | L: 11.5 mm | H: 4.5 mm | Pull force: 4 N | Temperature: 200 °C

Diameter D: 125 mm | L: 50 mm | H: 26 mm | Pull force: 1300 N | Temperature: 200 °C

Diameter D: 13 mm | L: 11.5 mm | H: 4.5 mm | Pull force: 10 N | Temperature: 200 °C

Diameter D: 16 mm | L: 11.5 mm | H: 4.5 mm | Pull force: 18 N | Temperature: 200 °C

Diameter D: 20 mm | L: 13 mm | H: 6 mm | Pull force: 30 N | Temperature: 200 °C

Diameter D: 25 mm | L: 15 mm | H: 7 mm | Pull force: 40 N | Temperature: 200 °C

Diameter D: 32 mm | L: 15 mm | H: 7 mm | Pull force: 80 N | Temperature: 200 °C

Diameter D: 36 mm | L: 16 mm | H: 7.7 mm | Pull force: 100 N | Temperature: 200 °C

Diameter D: 40 mm | L: 16.5 mm | H: 8 mm | Pull force: 125 N | Temperature: 200 °C

Diameter D: 40 mm | L: 18 mm | H: 8 mm | Pull force: 125 N | Temperature: 200 °C

Diameter D: 47 mm | L: 17 mm | H: 9 mm | Pull force: 180 N | Temperature: 200 °C

Diameter D: 47 mm | L: 21 mm | H: 9 mm | Pull force: 180 N | Temperature: 200 °C

Diameter D: 50 mm | L: 18.5 mm | H: 10 mm | Pull force: 220 N | Temperature: 200 °C

Diameter D: 50 mm | L: 22 mm | H: 10 mm | Pull force: 220 N | Temperature: 200 °C

Diameter D: 57 mm | L: 18.5 mm | H: 10.5 mm | Pull force: 280 N | Temperature: 200 °C

Diameter D: 57 mm | L: 22.5 mm | H: 10.5 mm | Pull force: 280 N | Temperature: 200 °C

Diameter D: 63 mm | L: 22 mm | H: 14 mm | Pull force: 350 N | Temperature: 200 °C
