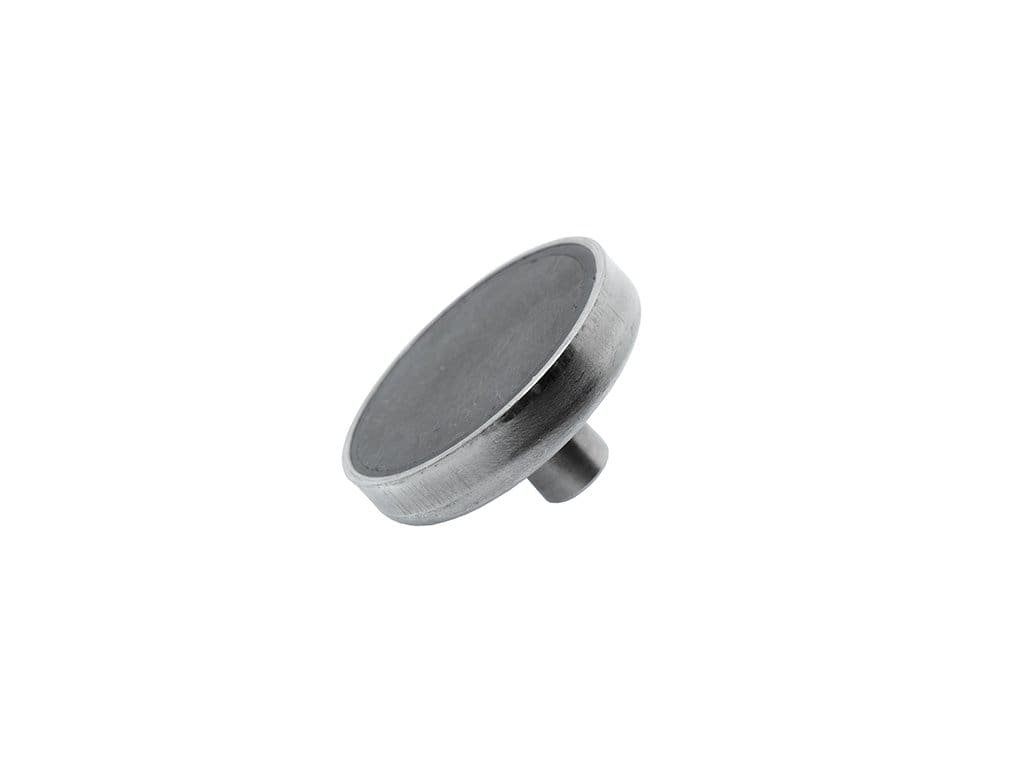

    Ferrite pot magnet with screw socket 36x16x7.7 mm

    Code: MC10007
    Not rated
    MC10020 01 min
    €5,33 / pcs €4,40 excl. VAT
    Out of stock

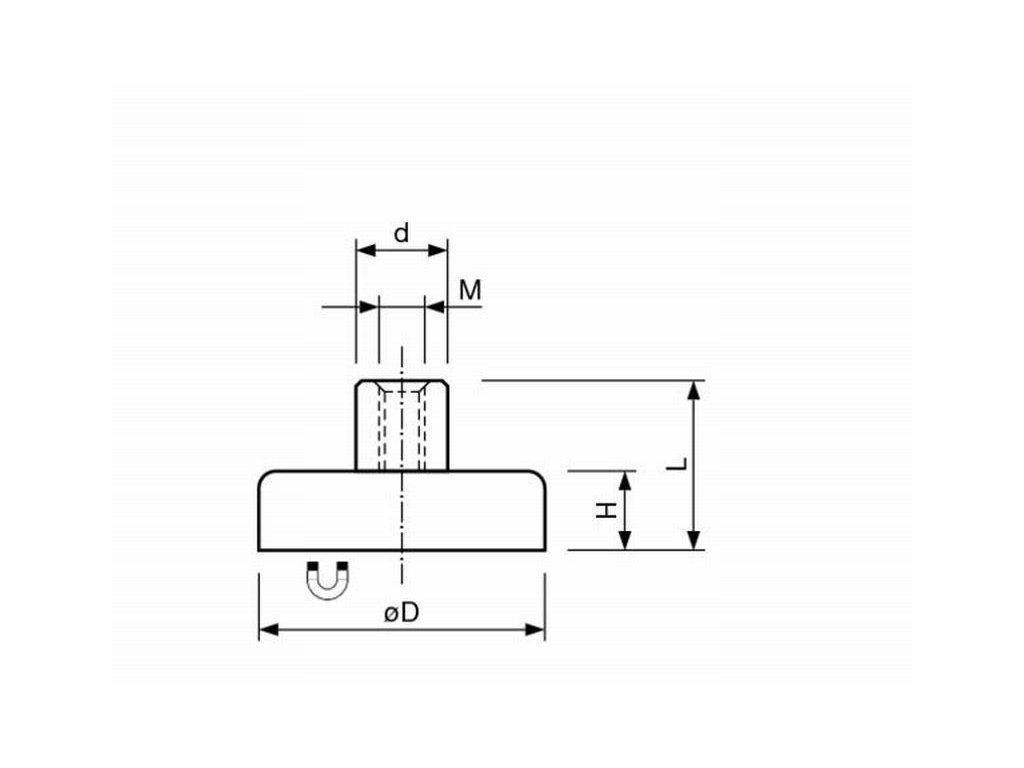

    Diameter D: 36 mm | L: 16 mm | H: 7.7 mm | Pull force: 100 N | Temperature: 200 °C

    Detailed information

    Product detailed description

    .

    Additional parameters

    Category: Ferrite pot magnets with screw socket
    Type: Ferrite
    H: 7.7 mm
    L: 16 mm
    M: M4 mm
    DK: 0 mm
    Diameter D: 8 mm, 36 mm
    Pull force (cca 1kg ~ 10N): 100 N
    Shape: With threaded sleeve
    Temperature (°C): 200 °C
    Tolerance: +0.1/-0.1 mm
    Weight: 42 g
