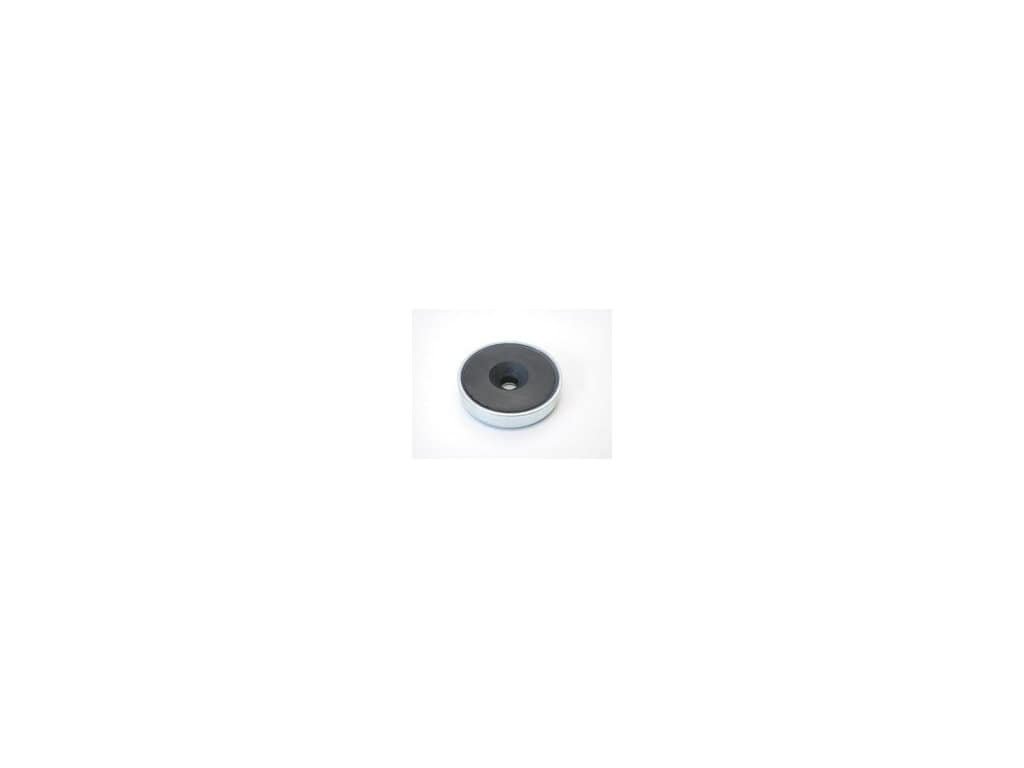

    Ferrite 90° countersunk pot magnet 25x5.5x7 mm

    Code: MC10073
    Not rated
    MC10073 01 min
    €3,79 / pcs €3,13 excl. VAT
    In Stock

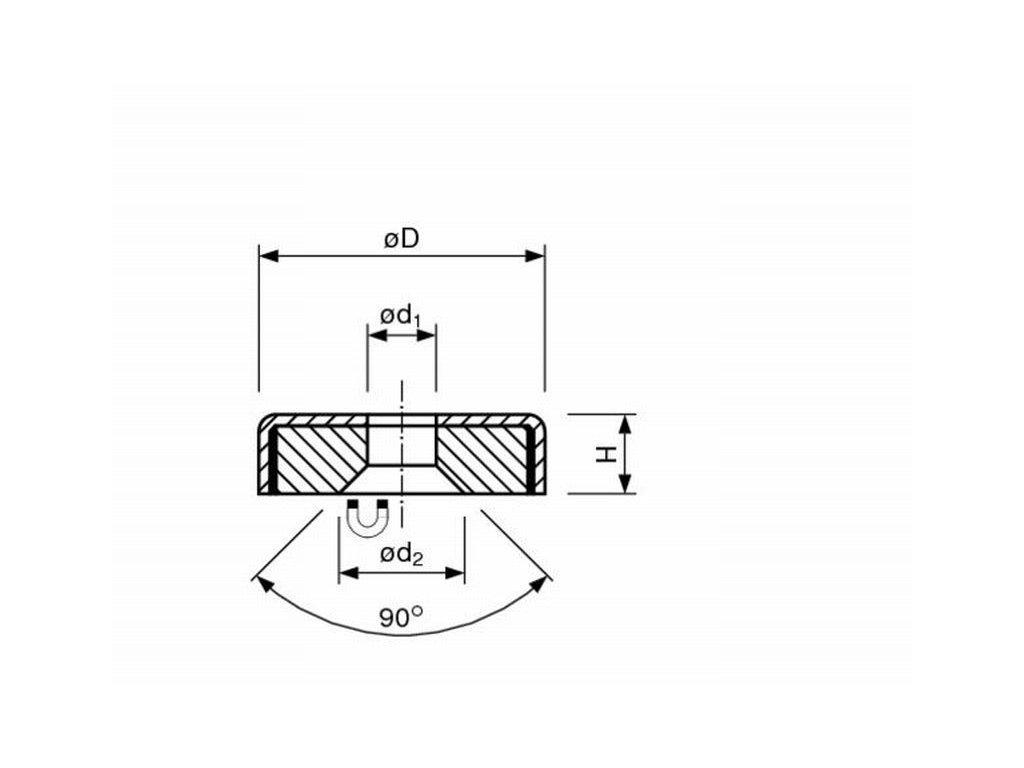

    Diameter D: 25 mm | d1: 5.5 mm | H: 7 mm | Pull force: 36 N | Temperature: 200 °C

    Detailed information

    Product detailed description

    .

    Additional parameters

    Category: Ferrite countersunk pot magnets
    Type: Ferrite
    d1: 5.5 mm
    d2: 11.5 mm
    H: 7 mm
    DK: 0 mm
    Diameter D: 25 mm
    Pull force (cca 1kg ~ 10N): 36 N
    Shape: With center hole
    Temperature (°C): 200 °C
    Tolerance: +0.1/-0.1 mm
    Weight: 17 g
