Metal disc – screw-on counterpart 64x3 mm

Product detailed description

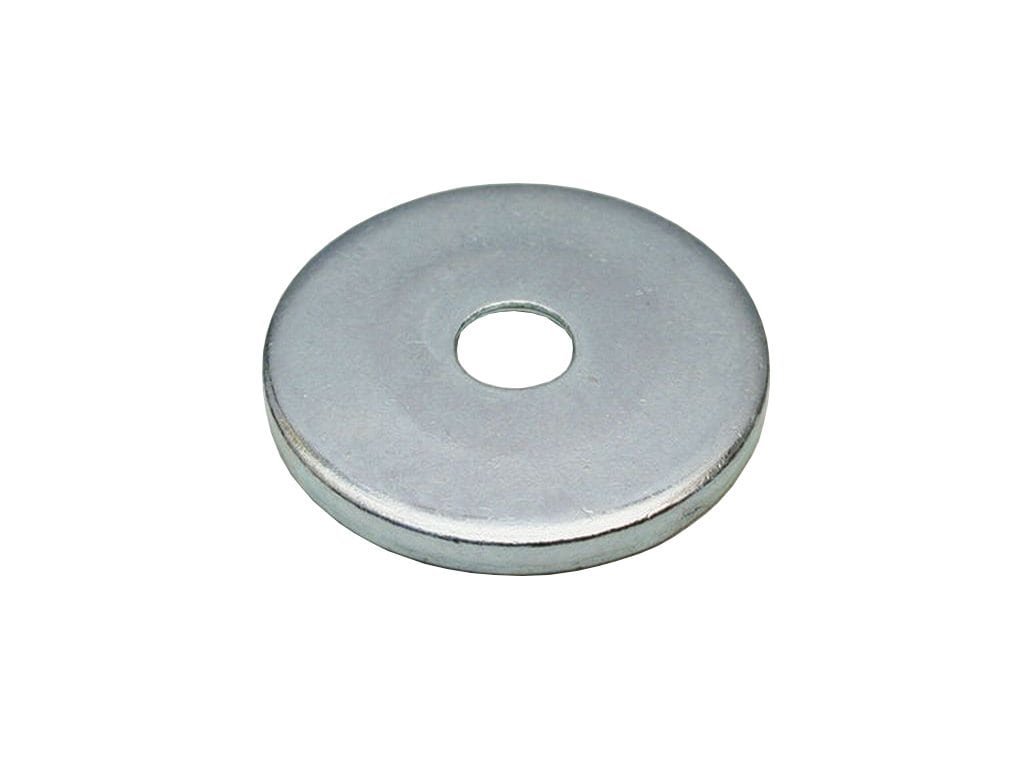

The largest metal disc counterpart in the range: a zinc-plated steel base 64 mm in diameter and 3 mm thick, 5.5 mm inner hole, weight 65 g. It is intended for large magnets and pot magnets roughly 60–64 mm across, which need an extensive seating area. It is anchored with a countersunk screw. It is not a magnet.

1. Which magnets is the 64x3 mm size made for?
   Large magnets and pot magnets approximately 60–64 mm in diameter, for example 63 mm ferrite pot magnets or plastic-coated pot magnets with a large seating face.

2. Why choose such a large steel disc counterpart?
   The holding force is only fully realised when the magnet seats on the steel over its whole area. With a magnet 60 mm across, a smaller steel base would not close the magnetic flux and the force would drop considerably.

3. Does the zinc-plated 64x3 mm part carry any magnetism?
   No. It is a zinc-plated steel disc counterpart — the magnet is ordered separately.

4. Is one screw enough to fix the 64 mm metal disc counterpart?
   The steel base has a single central hole of 5.5 mm. With large magnets and a strong pull-off force we recommend checking that the substrate structure will carry single-point anchoring.

5. How much does the 64x3 mm steel base weigh?
   65 g, the highest figure in the range. On portable assemblies we recommend including it in the total weight.

6. Is there a bonded version in a similar size?
   Yes, a metal disc counterpart with double-sided adhesive tape 60 mm in diameter and 2.5 mm thick. The bonded version is quicker to fit, while the screw-on one carries a higher, permanent load.
