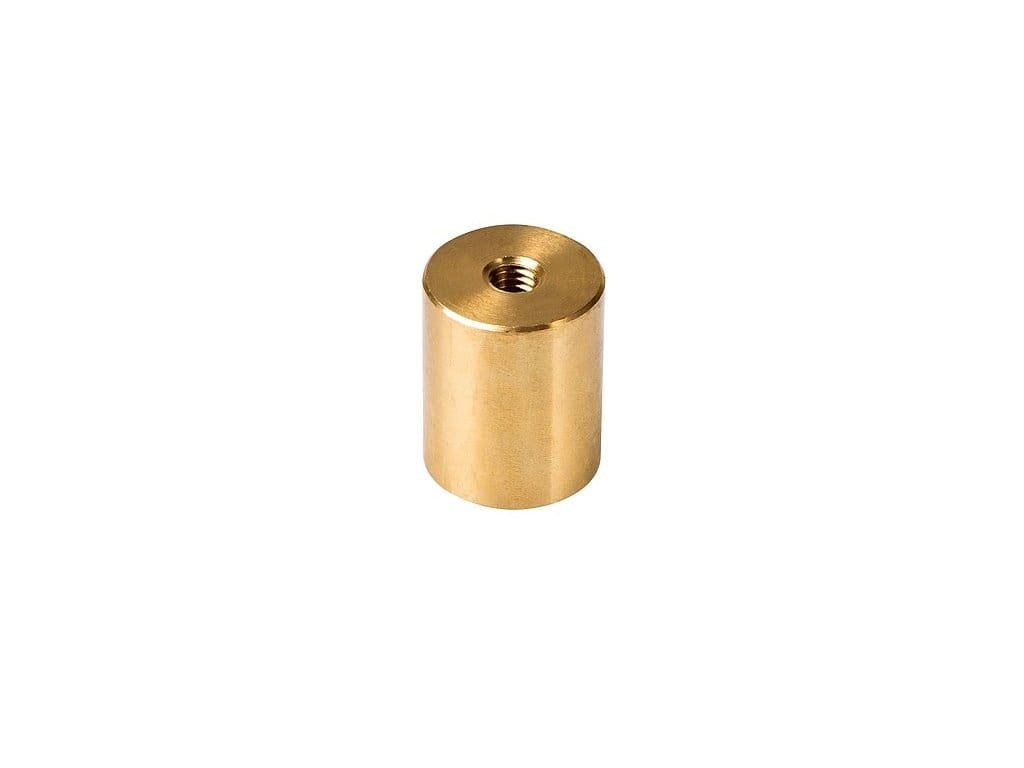

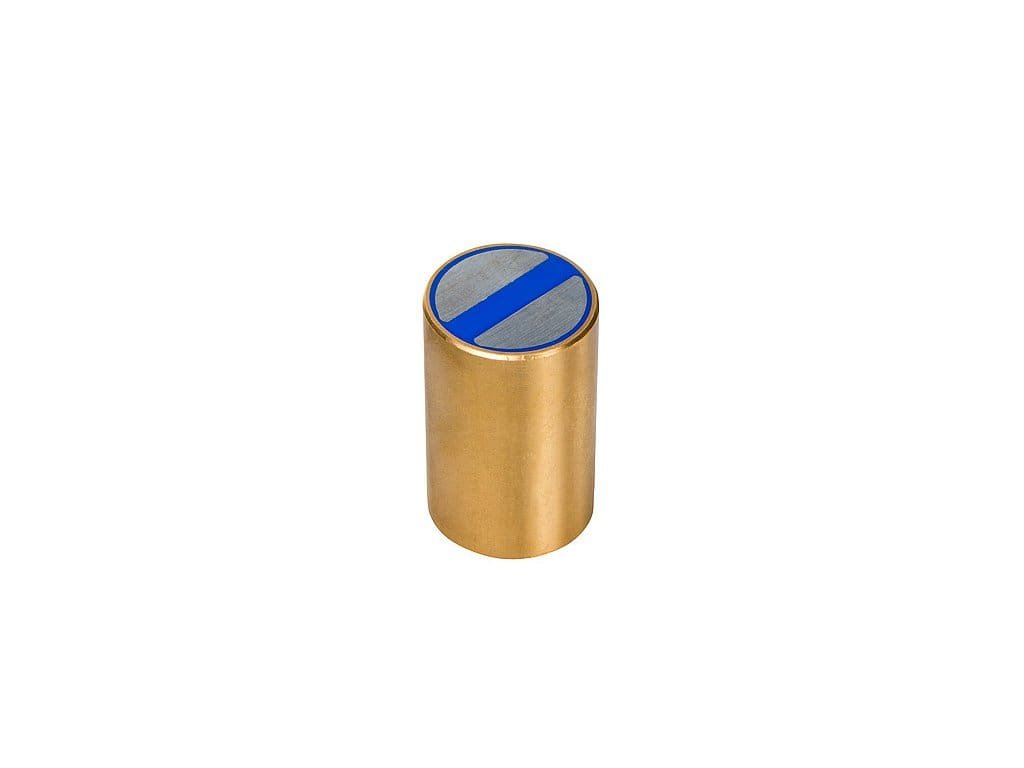

NdFeB brass body deep pot magnet with internal thread tolerance h6 8x20 mm

Code: BNC08-MTH6-M4
Not rated
€6,56 / pcs €5,42 excl. VAT
Out of stock

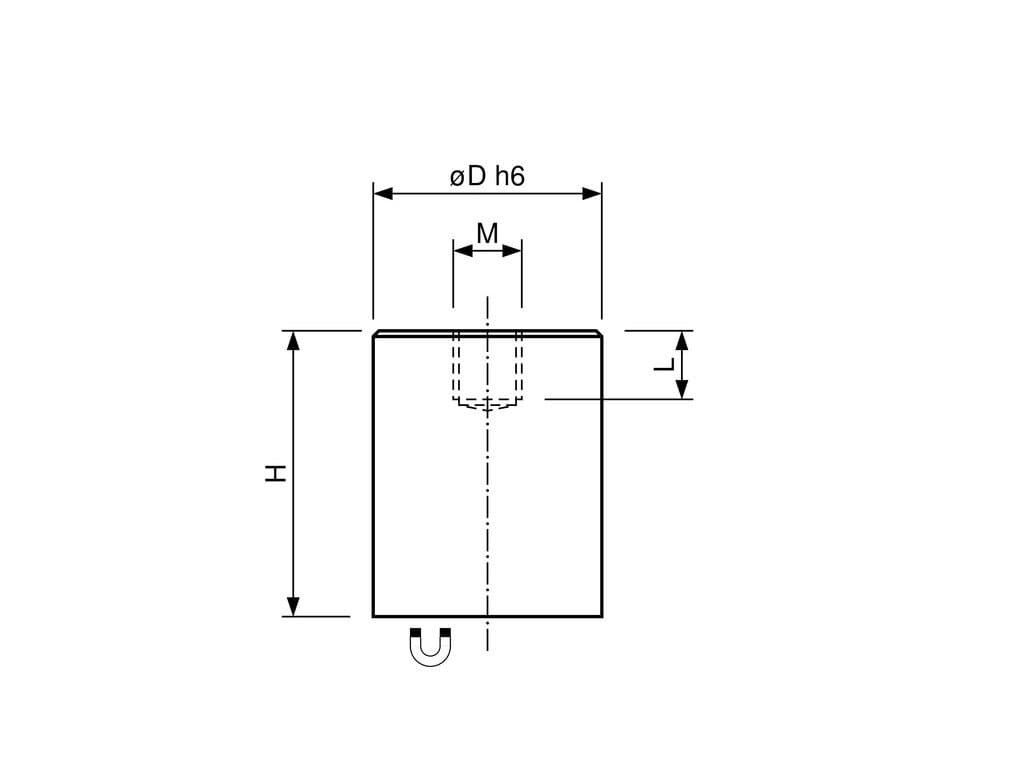

Diameter D: 8 mm | H: 20 mm | Pull force: 25 N | Temperature: 80 °C

Detailed information

Product detailed description


Additional parameters

Category: Neodymium brass body deep pot magnets
Type: Neodymium
H: 20 mm
MxL: M3x5 mm
Diameter D: 8 mm
Pull force (cca 1kg ~ 10N): 25 N
Shape: With internal thread
Temperature (°C): 80 °C
Tolerance: +0.1/-0.1 mm
Weight: 7.5 g
